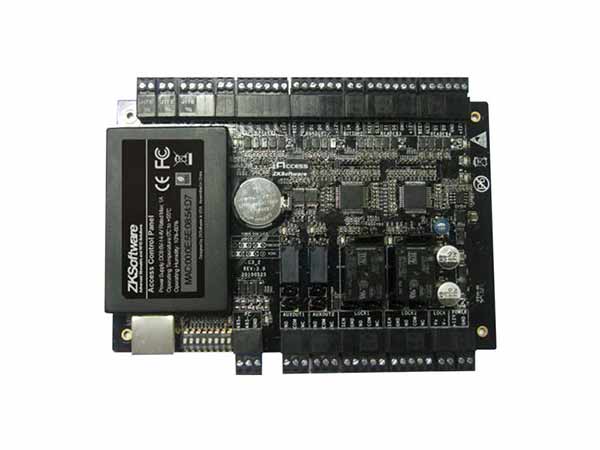

C3-200

C3-200 Access Systems are built on flexible, open technology to provide management, real-time monitoring and control of your access control system. Secure web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. These versatile design features take care of present and future needs with ease and efficiency, and the systems are some of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3-200 can communicate at 38.4 Kbps via RS-485 configuration or TCP/IP networks. Both can store up to 30,000 cardholders.

Specifications

  • Model: C3-200
  • CPU: 32bit MIPS CPU
  • RAM: 32M bits
  • Flash Memory: 256M bits
  • User: 30,000
  • Event Buffer: 100,000
  • Power / Current: DC 9.6V-14.4V, Rated Max.1A
  • Reader Port: 4ea (26bit Wiegand, 8bit Burst for PIN)
  • Communication: RS485, TCP/IP
  • Baud Rate: 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
  • Input Port: Exit Button #1, Door Sensor #1, Aux #1, Exit Button #2, Door Sensor #2, Aux #2
  • Output Port: 1 Aux FORM-C relay output-SPDT 2A@30V AC, 1 FORM-C relay output-SPDT 5A@36V DC or 8A@30V AC
  • LED Indicator: Yes, LED indication for communication, power, status and punch card
  • Operating Temperature: 0°to +55°C
  • Operating Humidity: 10% to 80%
  • Dimension (L*W) 10″ (160 mm)*6.6″ (106 mm)

Key Features

  • Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
  • Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers
  • Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
  • Can be integrated with other security systems such as CCTV, Intrusion Detection, Fire Alarm Release, and elevator Control for total security system. Directly compatible with ZK’s biometric reader controllers.
  • System management by browser from client PC’s. No need to install software on each client
  • Programming of special logic between doors is set up with simple pull down menus. No special scripts or code is required.
  • Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.
